When a product suite is consistently evolving it may be a problem to maintain beneath management the combinatorial explosion of colours; significantly when it’s important to preserve numerous associated merchandise. This text describes the challenges, explores the completely different approaches and unveils the answer our UI designers and builders uncovered whereas customizing Devexperts buying and selling functions.
The Downside
At Devexperts we produce Desktop, Internet and Cellular UI buying and selling functions. These functions look alike and have comparable skins. They are often personalized on request for a shopper, and this results in the event of customized skins. Basically, the primary launch of a customized pores and skin for every buyer is predicated on the preliminary product and barely evolves through the product life cycle, which may final a few years.
Now let’s have a look at the case in query.
Any buying and selling software is a fancy interface, consisting of a number of colours. Assigning completely different pixel-perfect editions for desktop, pill, and cellular screens will triple that quantity. As well as, the designer works with a number of skins comparable to “day” and “evening” themes or numerous white-labels. This makes the scenario tough to handle and can lead to a designer juggling 1000’s of colours.
Typical use-cases are:
- inspecting colours utilized in controls throughout all functions, editions and their white-labels
- controlling the opacity of a component
- adjusting the colour look of any aspect
- evaluating
- discovering outdated colours, then updating and recoloring them synchronously in a single product lineup
The labor intensive work outlined above is achieved by repeating each colour incidence in code. We use semantic names for these occurrences and name them variables. As you may think about a specific amount of automation and self-discipline is required within the colour administration course of. However how can we embed automation? What is usually a good instrument for designers to manage and handle modifications – and for builders to use them?
Our aim
We set ourselves the aim of enhancing navigation, and simplifying (for all of the events concerned within the growth) the administration of a number of colour palette at a time.
This difficulty was uncovered by one among our designers whereas buried in colour palette pages on Confluence wiki. They found that the quantity of variables grew to become innumerable.
Potential options
First we turned to some well-known functions.
1. Confluence or one other Company Wiki
That is really the place we had been caught for fairly a while. Right here is why we deserted Confluence pages:
1.1 Comparability issues
When utilizing Confluence pages, one palette of a person pores and skin takes a whole web page. When you may have a cellular app with 5 skins it means you may have 5 separate tabs and wish to change between them. In fact you may put the entire skins into one Confluence web page with an aggregated colour palette — simply create a column for all 5 skins. This will clear up the issue for a while. However for correct monitoring of modifications that you must create a brand new column for every “launch” of the colour palette. So the variety of columns dramatically grows and consequently — it decreases the general web page efficiency in a browser and makes the info more durable to scan with the bare eye. As well as, it’s unattainable to match two or extra palettes of various initiatives with out odd mouse clicks.
1.2 Time-consuming search of modifications
A second instance: engaged on a white-label mission a designer made modifications to a UI aspect, coloured it in crimson, and after that knowledgeable a developer to use it. Basically, palettes don’t change all that always between phases. In addition they keep constant throughout editions, and any modifications often contact a small subset of variables. Regardless of this the developer has to manually discover what was modified, scrolling pages all the best way up and down, or, if they’re fortunate sufficient, utilizing the search area. Generally they could even have to take a look at the web page historical past of years-old releases, if variables look complicated.

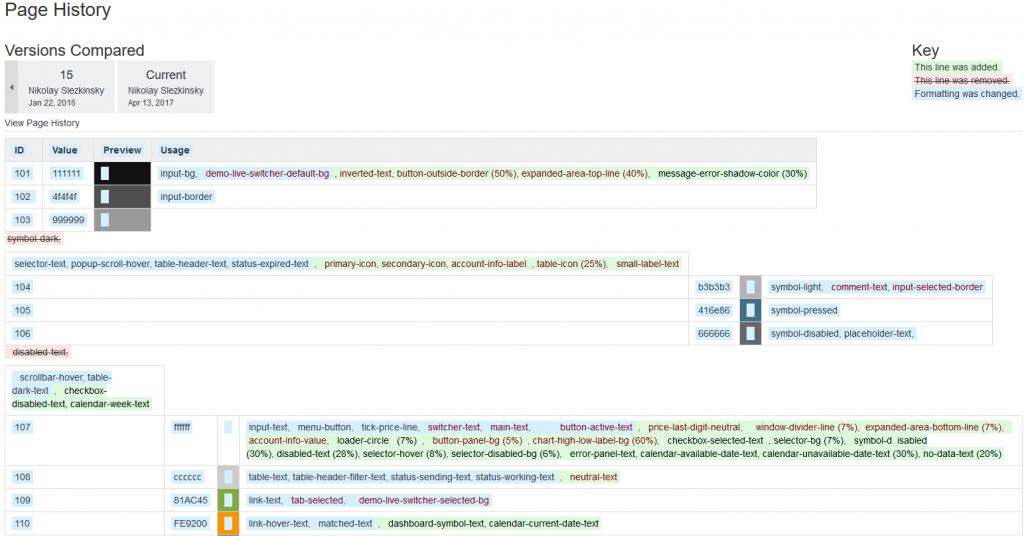

Each a designer and a developer need to examine whether or not the variables throughout a number of palettes are aligned, confirm that the variations are intentional and a human mistake didn’t happen. Confluence has a particular diff perform that can be utilized to match variations of colour palettes. However it was designed for code or plain textual content. A desk construction with colours and variables typically finally ends up misaligned even when making an attempt to examine fairly minor modifications.
The illustrations above present one variable reallocated.
Take be aware that as well as you can’t title any modifications within the historical past. So if you wish to evaluate a brand new palette with a sure earlier launch, that you must bear in mind the precise date and time of the discharge.
2. Spreadsheets / Excel-like Software program
Google Sheets might first spring to thoughts. That may in all probability work tremendous for a small firm with 2-3 functions or web sites. Significantly, when you’re not anticipating to work with a number of variations on the similar time, or require a considerable growth sooner or later as regards to themes, white-labels and skins.
Nevertheless, it has the identical weaknesses as a wiki. Let’s think about the next scenario: you may have one colour palette for one product consisting of 100 colours. After receiving orders for 10 white-labels and 4 app editions (desktop, net, pill, smartphone) you’re going to get 4k colours. Multiply this by Growth, QA and Manufacturing phases and also you’ll find yourself with 12k colours.
All web-based desk/ spreadsheet software program uploads the entire columns of saved colour palettes. You should utilize the disguise/ unhide choice to pick a particular subset of colour palettes, however this isn’t handy for the preferred case once you want simply two actual colour palettes out of 10 or 20+ palettes. Though Excel is a mighty instrument, it requires you to carry out additional mouse clicks and pressure your eyes.
As well as, you additionally must be disciplined and observe the identical construction, which you outlined to pre-existing skins, when you find yourself within the course of of making one other palette.
The revision historical past perform in Google Sheets works in the same method to Confluence pages and can’t visualize helpful diff knowledge between two actual variations (releases) of colour palette. To match the variations between the present and the earlier model there’s a entire class of software program known as VCS.
3. Model Management Techniques
VCS is a good instrument for textual content information. However right here 2 main issues come up:
3.1 Comparability downside
VCS helps us to work with a number of revisions of 1 file. However engineers typically want to match two completely different palettes, and completely different palettes are represented with completely different information. VCS just isn’t a lot assist right here, as a result of it doesn’t take into account these information as associated.
3.2 Shade preview
VCS can not depict colours in an correct approach, which is important for a designer. And not using a good preview you may have to bear in mind the textual content colour codes and examine on them every time, which will increase cognitive load. Primary colour illustration in some code-highlighting techniques provides a greater understanding of what’s going on for one column of textual content, nevertheless it fails compared with a desk construction with a number of columns and huge coloured cells.
Shade codes in VCS
With all of those issues and use-cases in thoughts and, after totally exploring each doable choice, we have now developed a instrument known as Chameleon.
Chameleon
It’s a net instrument for colour administration that can be utilized for white-labels, releases and through all of the manufacturing phases of latest merchandise.

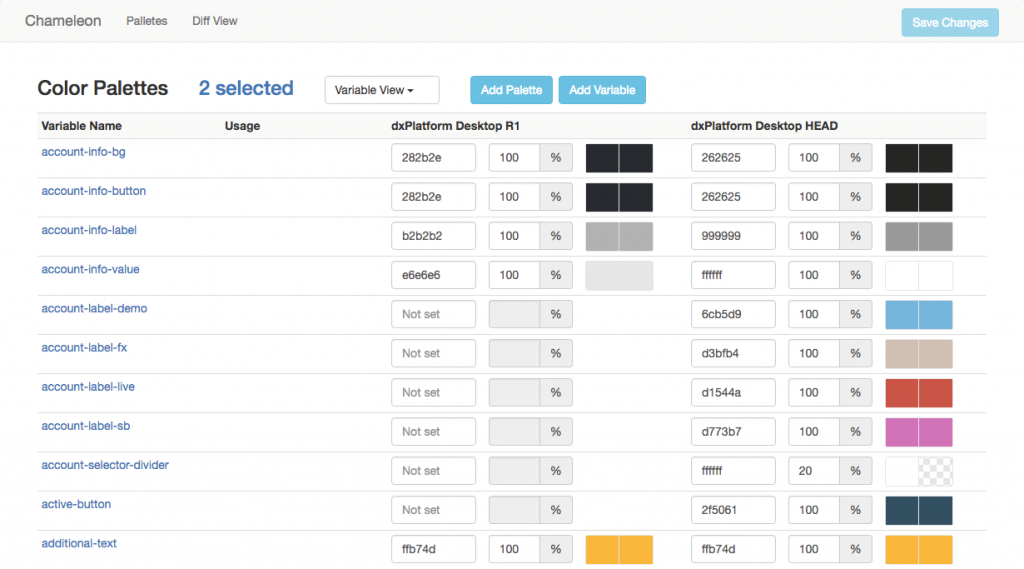

Examine colours in Chameleon
Options for the Design Workforce:
- Observe an inventory of variables and see the way it was utilized in completely different colour palettes for various initiatives.
Variables names

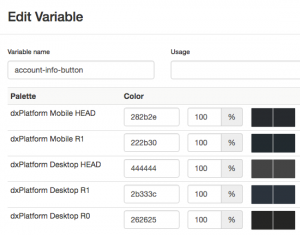

Variables comparability
- Observe colours for all variables concerned for a specific mission.

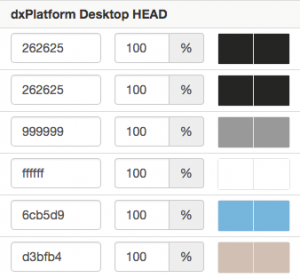

Listing of colours for a specific mission
- Management and evaluation modifications throughout a present enhancing session.

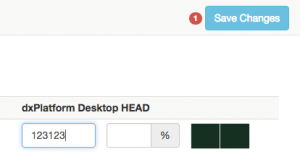

Save modifications
- Examine modifications in a present palette with any model of this palette previously.

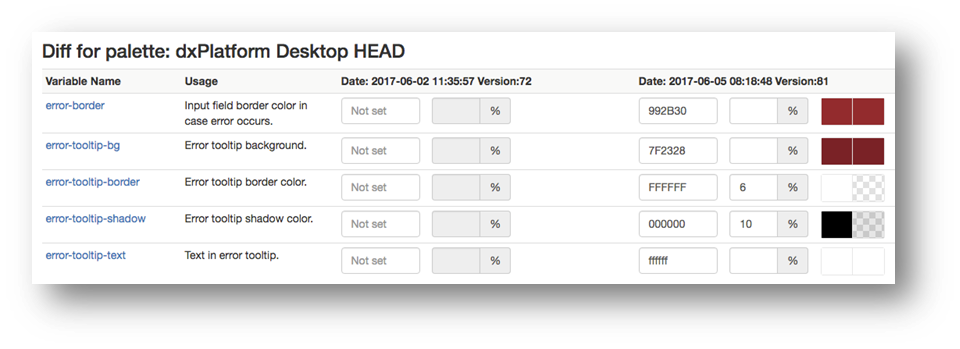

Diff view between 2 variations of palette exhibiting extra colours for brand new “Error Tooltip” objects
Options for the Growth groups:
- Design updates in manufacturing releases: Profitable enterprise initiatives undergo milestone (releases) that are deployed in a manufacturing atmosphere. On this case the colour scheme of grasp and launched initiatives have to be separated. Generally, growth groups get requests for brand new developments in already launched variations. It saves important time if a designer and a developer are in a position to load a snapshot of a launched colour scheme and barely change it, relatively than use colour schemes of grasp variations which can quietly change for the reason that launch went to manufacturing.

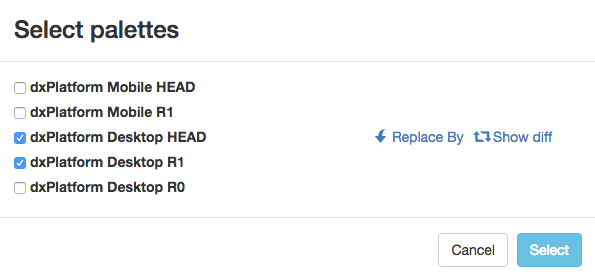

Snapshots of launched (R0, R1) and present (Head) colour schemes
- Incremental design updates: Growth crew members ought to be capable to get diff between already utilized variations of colour schemes, and its present model for every launch of their UI element.
Diff perform
A couple of phrases concerning the applied sciences we used:
Since this can be a typical small-scale enterprise net app, we determined to make use of the instruments that are most acquainted to us and which might assist us implement the answer rapidly. For many who have an interest on this explicit instance, we used:
- Spring-boot
- H2 Database Engine
- jsoup
- Junit
- WebJars
- AngularJS
- Bootstrap
- Swagger.
We opensourced Chameleon on GitHub for everybody. In case you have ideas on methods to enhance Chameleon, we’d be happy to listen to from you – simply depart a remark under!
